3517388M1 M24 Special Washer for Terex TLB840PS

Product overview

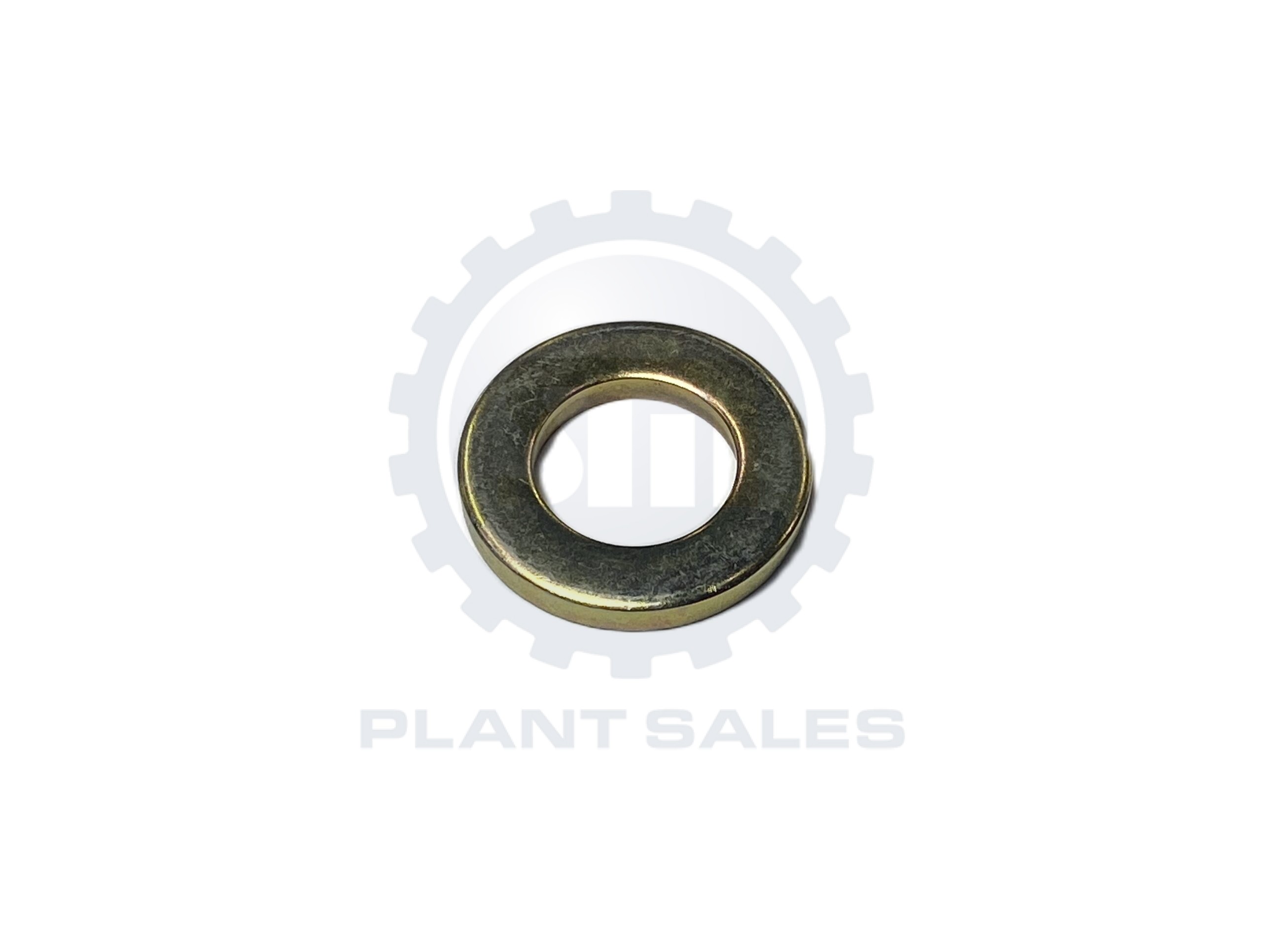

3517388M1 is an M24 special washer. Listed in SM Plant Sales' Mecalac parts range.

A washer sits at the specified fixing or component interface within an assembly.

Match the bore, outside diameter, thickness and washer type to the original part.

Applications

• Terex TLB840PS (Tier 4 Interim; SS 14 ft swing-system arrangement)
• Terex TA3S (four-wheel drive; swing-skip front-frame assembly; parts manual 1107-0)
• Thwaites MACH570 and MACH573 3-tonne Yanmar 3TNV88-XWA2 dumpers (T7695 washer comparison; match centre-pin assembly and size)
• Thwaites MACH865 and MACH866 6-tonne Deutz TCD3.6L4-70KW-DOC dumpers (T7695 washer comparison; verify original position)
• Thwaites 4000MK2, 6000MK3, 7000MK3 and 9000MK3, plus Alldrive 4-tonne (confirm pin/kit position)
• Thwaites 6000MK3, 7000MK3 and 9000MK3 (confirm assembly)
• Thwaites 5-, 6- and 7-tonne from 2002, and 9-tonne 2002-2005 with 32 mm pins (verify fitted pin)
• Thwaites Alldrive 5-, 6- and 7-tonne before 2001 (check kit and washer position)

Match the full part reference, machine version and serial number before ordering. Where an engine, year or variant is listed, that restriction applies.

Product details

Product and ordering notes

The TLB840PS application follows Terex parts manual 1121-0, revision 0.10. Match the machine serial number and relevant assembly drawing before ordering.

The TA3S application follows Terex parts manual 1107-0, published March 2015, and the specified assembly. Match the machine identification and parts drawing; the publication and assembly-sheet dates are not production-year ranges.

Ordering

Order online or call the SM Plant Sales parts team. Please have the part number and machine details ready if you need help checking suitability.
