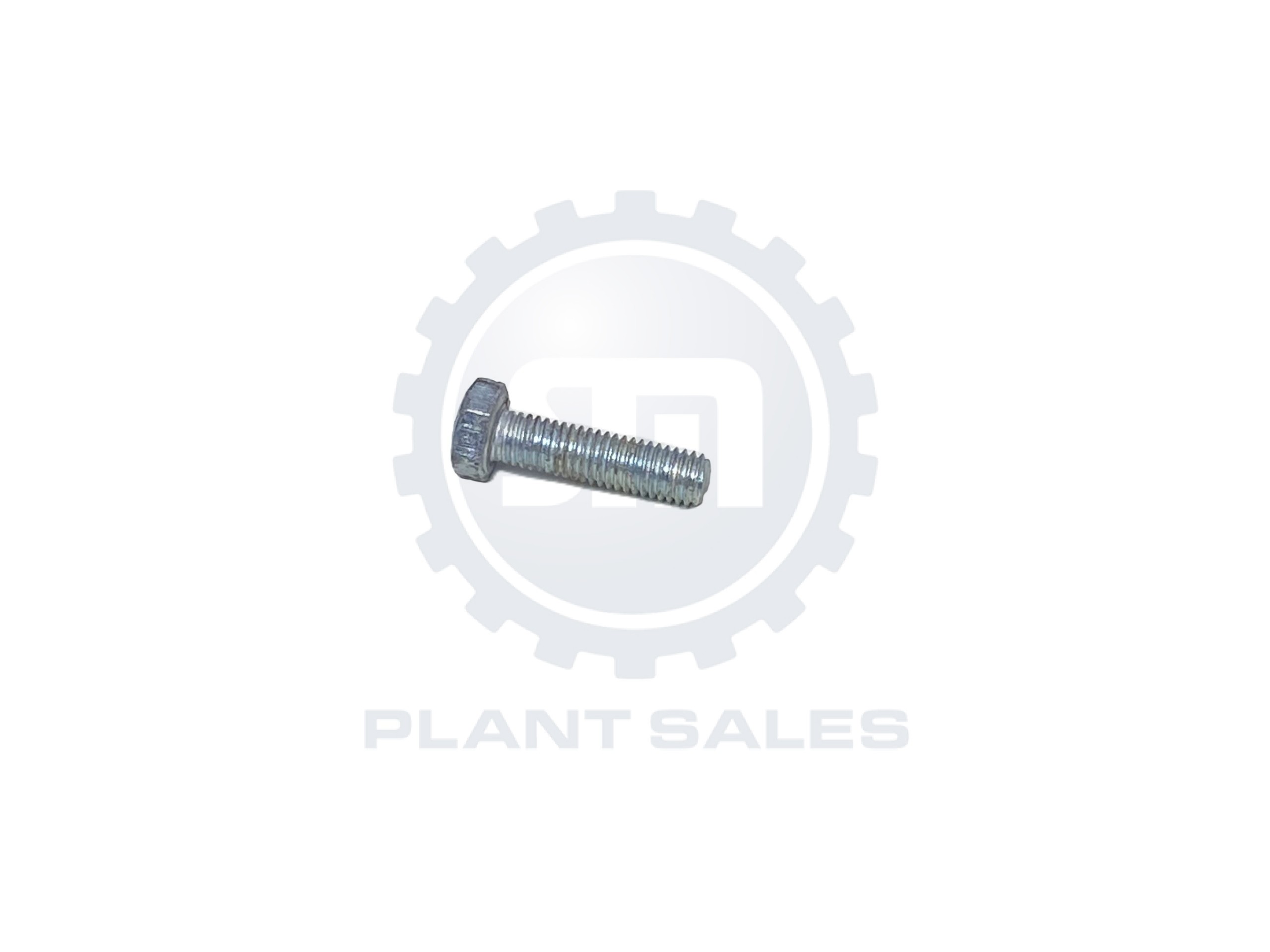

MS42-30 Bolt for Mecalac TV800

Product overview

MS42-30 is a bolt. Listed in SM Plant Sales' Mecalac parts range.

A fixing used to secure components at the position specified in the parts drawing.

Match the thread, length, head style and required grade to the original fixing.

Applications

• TV800 (Kubota tandem roller; specified front-frame fixing position)
• TV800H (Kubota tandem roller; specified front-frame fixing position)
• TV900 (Kubota tandem roller; specified front-frame fixing position)
• TV1000 (Kubota tandem roller; specified front-frame assembly; engine installation; exhaust assembly fixing positions)
• TV1200 (Kubota tandem roller; specified front-frame assembly; engine installation; exhaust assembly fixing positions)
• TA5 (4WD dumper, Dana axles; specified seat-support assembly; engine installation; brake-pedal assembly fixing positions)
• TA5S (4WD dumper, Dana axles; specified seat-support assembly; engine installation; brake-pedal assembly fixing positions)
• TA6 (4WD dumper, Dana axles; specified seat-support assembly; engine installation; brake-pedal assembly fixing positions)
• TA6S (4WD dumper, Dana axles; specified seat-support assembly; engine installation; brake-pedal assembly fixing positions)
• TA7 (4WD dumper, Dana axles; specified seat-support assembly; engine installation; brake-pedal assembly fixing positions)
• MBR71, 1-71; TA2H, TA2SH, TA2EH, TA2SEH; TA3, TA3S, TA3H, TA3SH, TA3.5SH; TA6, TA6S; TA9, TA9S; 3000; PT9000, PT10000 (verify each fixing and grade)
• Also fits: 1-71, 3000

Match the full part reference, machine version and serial number before ordering. Where an engine, year or variant is listed, that restriction applies.

Product details

Ordering

Order online or call the SM Plant Sales parts team. Please have the part number and machine details ready if you need help checking suitability.
