SM Plant Sales in Rugby is an authorised Slanetrac dealer. We list 58 Slanetrac parts online for the HT1000 tracked high-tip dumper, petrol and diesel: tracks, rollers, idlers and sprockets, skip pins and bushes, hydraulic filters and hoses, controls, and Honda and Kohler engine parts. Order by 3pm Monday to Friday for next working day delivery of in-stock parts, and if you are not sure which part you need, send a photo of the old one to the parts desk.
- SM Plant Sales is an authorised Slanetrac dealer: we sell the HT1000 new and list 58 Slanetrac parts online.

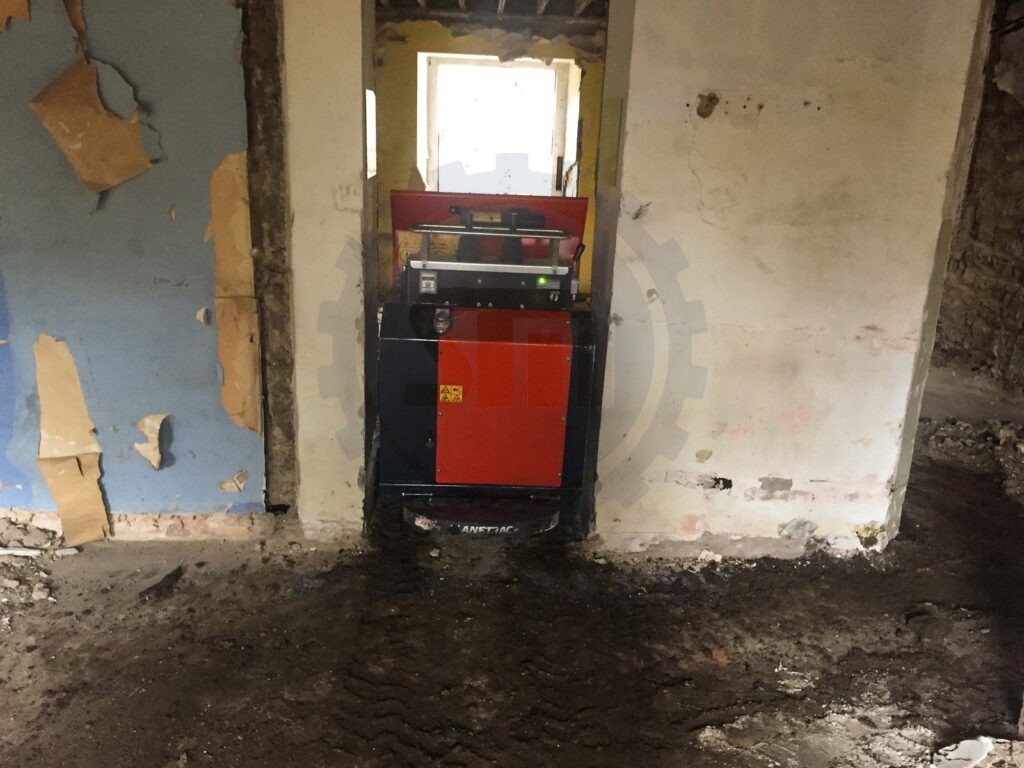

- The Slanetrac HT1000 is a 1 tonne tracked dumper with a 1,300 mm high tip, built for narrow access.
- There are two versions: the HT1000 Compact petrol (Honda GX390, 700 mm wide) and the HT1000S diesel (Kohler KDW702, 750 mm wide).
- Most Slanetrac part numbers start HT, such as HT013-G; many diesel engine parts start K00.
- The parts desk is open Monday to Friday, 7:30am to 5pm, on 01788 555377.
Which Slanetrac dumper do I have?
Look at the engine. The HT1000 Compact has its Honda petrol engine on show, the HT1000S diesel has its engine behind a black cover with a grille, and the smaller HT690 has “The Pup” on the engine guard. Where a part fits only one version, its name says HT1000 Petrol or HT1000 Diesel.
HT1000 Compact petrolHonda GX390 engine on show, 700 mm wide, 1 tonne.
HT1000S dieselKohler KDW702 behind a grille, 750 mm wide, 1 tonne.
HT690 “The Pup”The name is on the engine guard; 800 kg capacity. Tell us if yours is a Pup when you order.
Getting the version right matters because the engine parts, throttle cables, keys and wiring are different for petrol and diesel, while the tracks, skip and hydraulics are where most owners start.
Slanetrac HT1000 specifications
| HT1000 Compact (petrol) | HT1000S (diesel) | |
|---|---|---|
| Engine | Honda GX390, 13 hp (10.4 kW) | Kohler KDW702, 16.5 hp (12.3 kW), two cylinders, water cooled |
| Starting | Electric | Electric |
| Load capacity | 1 tonne | 1 tonne |
| Width | 700 mm | 750 mm |
| Length | 1,900 mm | 1,900 mm |
| Tipping height | 1,300 mm | 1,300 mm |
| Unladen weight | 670 kg | 770 kg |
| Fuel tank | 5.5 litres | 6.0 litres |
| Hydraulic oil tank | 30 litres | 30 litres |
| Speed | 4.5 km/h | 4.5 km/h |
| Gradability | 36% to 50% | 36% to 50% |
Both are hydraulically driven with braked drive motors and turn on their own length. The diesel also has an automatic engine cut-out if the machine rolls over. Figures are Slanetrac’s.
Which Slanetrac parts do you stock?
We list 58 parts for the HT1000, grouped here by area of the machine. Every one is on the Slanetrac parts page with its part number in the name.
Tracks and running gear
HT1000 track, rollers and roller repair kit, idler wheel and idler assembly, sprockets, wheel repair kit.
TRACK-HT1000, HT057-G, HT058-G, HT060-G, HT059-G, HT069-G, HT20052016-7, HT061-G
Drive
Drive motor, drive motor seal kit, track motor seal kit (petrol), cover plate, snap ring.
HT065-G, HT081-G, HT20052016-10, HT20052016-4, HT20052016-6
Skip, pins and frame
Skip pin (330 mm), pin (282 mm), bush, shim kit, locknut and pin, capped bolt.
HT013-G, HT014-G, HT021-G, HT028-G, HT070-G, HT20052016-8
Hydraulics
Tip control valve, step valve, hydraulic filter and housing, breather, pump to tank hoses, hose (190 mm), bell housing, coupling kit.
HT5006, HT037-G, HT048-G, HT047-G, HT049-G, HT5009, HT6030, HT5014, HT5013
Controls and body
Throttle handle and cables, lever, brake block, step rubber, step locker, rubber boot, canopy lock, fuel cap, roll over indicator.
HT077-G, HT1000TCP, HT1000TCD, HT051-G, HT067-G, HT034-G, HT5008, HT045-G, HT6040, HT6023, HTROI001
Petrol engine (Honda)
Starter motor, ignition key, 10A ignition control box.
710-157, 35111-880-013, 31610-Z5T-831ZB
Diesel engine
Diesel service kit, fuel, oil and air filters, fuel stop solenoid, starter motor, top water hose, exhaust pipe, intake manifold gasket, rubber engine mount.
KDW702UK, K0021752880, K0021752830, K0021751640, K0035871190, K0058402240, K0053650700, HT6019, ED0044200800-S, HT033-G
Electrics, keys and switches
Wiring harness and engine wiring harness (diesel), ignition panel (diesel), ignition switch, ignition keys.
HT6012, K0021863040, K0072454660, HT6025, HT1000D-KEY, 6026
Which Slanetrac parts do owners order most?
On our website, the Slanetrac parts ordered most often are wear and service items. If your machine works every day, these are worth keeping on the shelf.
HT1000TCP Throttle Cable for Slanetrac HT1000 Petrol£33.99 ex VAT
HT1000D-KEY Ignition Key for Slanetrac HT1000 Diesel£18.50 ex VAT
HT5009 Hose - Hydraulic Pump to Tank (Two Hoses - 170mm & 270mm long) for Slanetrac Dumpers£32.00 ex VAT- KDW702UK Diesel Service Kit for Slanetrac HT1000£125.00 ex VAT
HT081-G Drive Motor Seal Kit for Slanetrac Dumpers£80.00 ex VAT
HT069-G Sprocket for Slanetrac Dumpers£190.00 ex VAT
HTROI001 Roll Over Indicator for Slanetrac Dumpers£20.00 ex VAT- HT077-G Throttle Handle for Slanetrac Dumpers£47.50 ex VAT
How do I find the right Slanetrac part?
Start with the part number, then tell us which machine you have. Slanetrac machines are not in our Parts by machine finder yet, so the part number is the quickest route.
- Find the part number. Use your parts list or any code on the old part. Most Slanetrac numbers start HT (HT013-G, HT6012, HT5009); many diesel engine parts start K00. Search the number in the site search.
- Check the machine. HT1000 petrol or diesel, or the HT690 Pup: it decides the engine parts, throttle cable, key and wiring. For diesel engine parts, the engine plate tells you the Kohler model.
- Measure where a size is listed. Pins are listed by length (282 mm and 330 mm), and the track by its size.
- Not sure? WhatsApp a photo of the old part and the machine’s serial plate to 07989 556457, or call 01788 555377. Our guide to finding the right part covers what to send.
When should I replace Slanetrac tracks, rollers and sprockets?
Replace a rubber track when it is cracked through, has lost lugs or shows its internal steel, or when it keeps jumping off even at the right tension. The HT1000 track is listed as 180 x 72 x 40, the usual rubber track notation for width (mm), pitch (mm) and number of links.
- Sprockets: hooked or pointed teeth wear a new track quickly, so check them whenever you change a track.
- Rollers and idlers: a roller that is seized, flat-spotted or leaking puts extra load on the track. We list the rollers, a roller repair kit, the idler wheel and the idler assembly.
- Drive motors: oil around a drive motor usually means its seals need renewing; we list the drive motor seal kit and a track motor seal kit for the petrol HT1000.
Follow the operator’s manual for track tension and service intervals. Our dumper daily checks and servicing guide has a walk-round checklist that suits tracked dumpers too.
Servicing a Slanetrac HT1000
For the diesel HT1000, the KDW702UK diesel service kit is the simplest way to order a service; the fuel filter, oil filter and air cleaner are also listed on their own. On both versions, change the HT048-G hydraulic filter and check the breather and hoses as the manual sets out, because a tracked dumper’s drive, tip and steering all run on hydraulics. You will find filters for other machines in our filters range.
Buying a new Slanetrac HT1000 from an authorised dealer
As an authorised Slanetrac dealer, SM Plant Sales supplies the Slanetrac HT1000 new, as the Compact petrol and the HT1000S diesel, and backs it with parts from the same desk. In 2025 Will Hire of Stourbridge bought two Slanetrac 1 tonne high-tip tracked dumpers from us. Call the sales team on 01788 555377 for prices, availability and demonstrations, and read which site dumper? to compare tracked and wheeled dumpers and the different tip types.
Questions
Where can I buy Slanetrac HT1000 parts in the UK?
SM Plant Sales in Rugby, an authorised Slanetrac dealer, lists 58 Slanetrac HT1000 parts online for the petrol and diesel versions and delivers across the UK. Order by 3pm Monday to Friday for next working day delivery of in-stock parts, or call the parts desk on 01788 555377.
Is SM Plant Sales an authorised Slanetrac dealer?
Yes. SM Plant Sales is an authorised Slanetrac dealer, selling the HT1000 tracked dumper new and stocking Slanetrac parts. Call 01788 555377, Monday to Friday, 7:30am to 5pm.
Do you sell replacement tracks for the Slanetrac HT1000?
Yes. We list the HT1000 track (180 x 72 x 40), plus the rollers, roller repair kit, idler wheel, idler assembly and sprockets that wear with it.
What engine does the Slanetrac HT1000 have?
The HT1000 Compact has a 13 hp Honda GX390 petrol engine and the HT1000S has a 16.5 hp two-cylinder Kohler KDW702 diesel, both with electric start. Tell us which you have, because the engine parts, throttle cable, key and wiring differ.
Can I search for a Slanetrac part by its part number?
Yes. Every Slanetrac part is listed under its part number, such as HT013-G for the 330 mm skip pin, so you can search the number from your parts list or the old part. If you cannot find a number, WhatsApp a photo of the part to 07989 556457.
Does SM Plant Sales sell new Slanetrac dumpers?
Yes. We supply the Slanetrac HT1000 1 tonne tracked high-tip dumper new, as the HT1000 Compact petrol and the HT1000S diesel. Call 01788 555377 for prices.
